Hydrological Map

The locations of streams in the survey area are provided as an AutoCAD (Release 12) .DXF file named HYDRO.DXF. The ArcGIS .SHP file containing the same information has been compressed into a .ZIP file named HYDRO.ZIP. Drawing units of both file types are meters; the coordinate system is WGS84-based UTM in Zone 43 North.

The layers in the .DXF drawing, their colors, and the information contained on each are as follows:

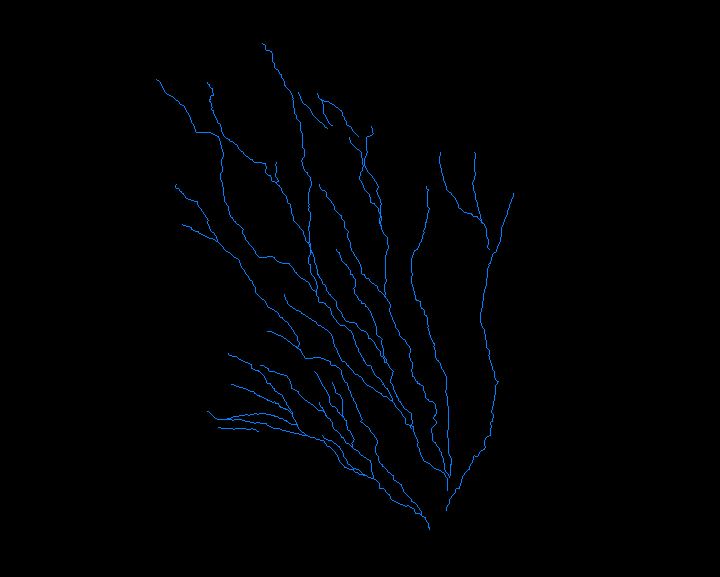

• RIVERS_AND_CHANNELS (Blue): AutoCAD polylines tracing streams within the study area.
