Collection Boundaries

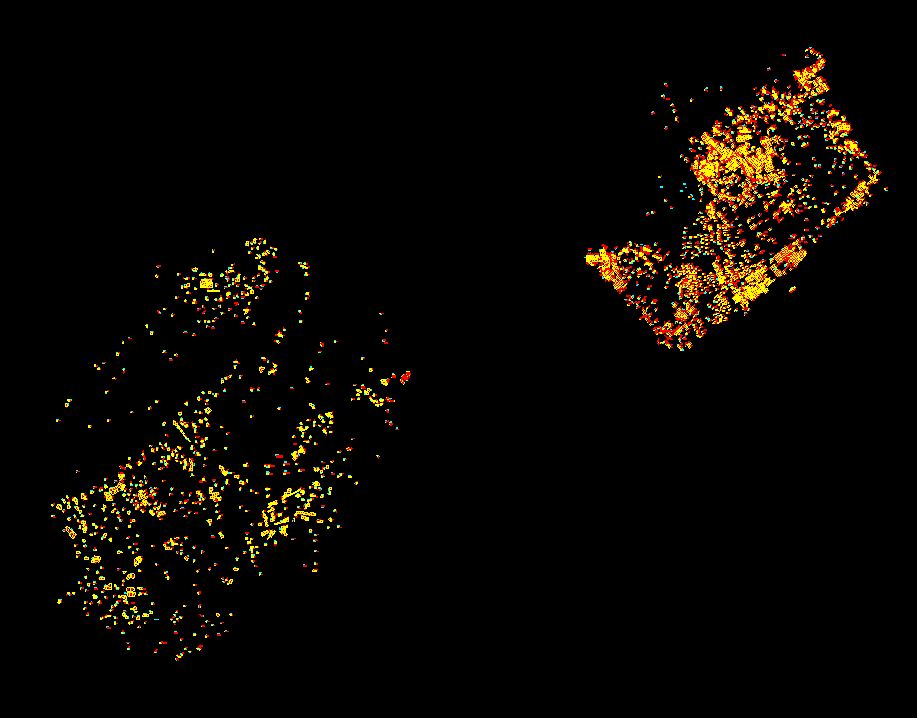

The location and limits of each collection unit are provided as an AutoCAD (Release 12) .DXF file. The file is named COLLECTION.DXF. The layers in this drawing, their colors, and the information contained on each are as follows:

• COLLECTIONS (Yellow): Boundaries for each collection unit are indicated by AutoCAD closed polylines enclosing their complete area.
• COLLECTION_NUMBERS (Red): Each collection unit number is provided as a text string whose insertion point is inside the polyline it corresponds to, for AutoCAD or other programs capable of matching text strings to polylines in this way.
• SITE_NUMBERS (Cyan): Site numbers provided as text strings.
